LDAP - LDAP with TLS/SSL
我在前幾篇 LDAP 文件中,介紹與實作了 LDAP 的簡單應用,但是 LDAP 傳送時是使用明碼的方式,也就是說在傳送資訊的時間是沒有任何的加密,如果在資訊傳送的過程中封包被側錄,那麼側錄者不用花費任何的力氣就可以得知訊息。
在這篇文章中,我會實做如何讓 OpenLDAP 使用 SSL 來做傳輸時的資訊加密,讓資訊在傳送中加了一層安全防護。
當然了,本次的 LDAP 設計架構完全是使用 LDAP 入門 (new window) 裡所實做的架構,可以前往參考。
你可以參考 更安全的的連線 Apache + SSL (new window) 做出一個 LDAP 的憑證,下面的範例中我會建立一個 ldap.l-penguin.ivd.tw.key 的私有金鑰。
0001 0002 0003 0004 0005 |
root # openssl genrsa -out ldap.l-penguin.idv.tw.key 1024 Generating RSA private key, 1024 bit long modulus ........................................................................++++++ ......................++++++ e is 65537 (0x10001) |
建立一個 csr 待簽證檔
0001 0002 0003 0004 0005 0006 0007 0008 0009 0010 0011 0012 0013 0014 0015 0016 0017 0018 0019 0020 0021 |
root # openssl req -new -key ldap.l-penguin.idv.tw.key -out ldap.l-penguin.idv.tw.csr You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [GB]:TW State or Province Name (full name) [Berkshire]:Taiwan Locality Name (eg, city) [Newbury]:Taipei County Organization Name (eg, company) [My Company Ltd]:l-penguin Corp. Organizational Unit Name (eg, section) []:IT Common Name (eg, your name or your server's hostname) []:ldap.l-penguin.idv.tw Email Address []:steven@l-penguin.idv.tw Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []: An optional company name []: root # |
簽證 csr 檔案
如果你的單位沒有憑證中心,那麼可以使用 更安全的的連線 Apache + SSL (new window) 的方式來做自我簽證,但如果你的環境中已經有憑證中心(本例中為 ca.l-penguin.idv.tw)那麼你可以使用 ca.l-penguin.idv.tw 來幫 ldap.l-penguin.idv.tw 做簽證。
若你想建立一個 CA 認證中心,則可以參考 建立一個可信任的單位根簽證 (Root CA) (new window)。
0001 0002 0003 0004 0005 0006 0007 |
root # openssl x509 -req -days 365 -in ldap.l-penguin.idv.tw.csr -CA ca.l-penguin.idv.tw.crt -CAkey ca.l-penguin.idv.tw.key -CAcreateserial -out ldap.l-penguin.idv.tw.crt Signature ok subject=/C=TW/ST=Taiwan/L=Taipei County/O=l-penguin Corp./OU=IT/CN=ldap.l-penguin.idv.tw/emailAddress=steven@l-penguin.idv.tw Getting CA Private Key Enter pass phrase for ca.l-penguin.idv.tw.key:your_password root # |
當做好簽證之後,在 ldap.l-penguin.idv.tw 上應該要有兩個重要的憑證檔案。
0001 0002 0003 0004 0005 0006 |
root # ls -l total 12 -rw-r--r-- 1 root root 1017 Feb 21 01:12 ldap.l-penguin.idv.tw.crt -rw-r--r-- 1 root root 737 Feb 21 00:55 ldap.l-penguin.idv.tw.csr -rw-r--r-- 1 root root 887 Feb 21 00:54 ldap.l-penguin.idv.tw.key root # |
做好憑證之後,應該要設定 OpenLDAP 的 slapd.conf 讓 OpenLDAP 知道以那些憑證來做 TLS/SSL 的傳輸。
0001 0002 0003 0004 0005 0006 0007 0008 |
root # vi /etc/openldap/slapd.conf --------------------------------------------------------- TLSCipherSuite HIGH::MEDIUM:LOW # 設定憑證檔案 TLSCertificateFile /CA/ldap.l-penguin.idv.tw.crt # 設定私有憑證金鑰檔案 TLSCertificateKeyFile /CA/ldap.l-penguin.idv.tw.key --------------------------------------------------------- |
重新啟動 OpenLDAP
0001 0002 0003 0004 0005 0006 |
root # service ldap restart Stopping slapd: [ OK ] Checking configuration files for slapd: config file testing succeeded [ OK ] Starting slapd: [ OK ] root # |
確認 OpenLDAP 是否有聆聽 636 埠
0001 0002 0003 0004 0005 0006 |
root # netstat -ntulp | grep slapd tcp 0 0 0.0.0.0:389 0.0.0.0:* LISTEN 1737/slapd tcp 0 0 0.0.0.0:636 0.0.0.0:* LISTEN 1737/slapd tcp 0 0 :::389 :::* LISTEN 1737/slapd tcp 0 0 :::636 :::* LISTEN 1737/slapd root # |
以上,就完成了伺服器端的設定。
如果要讓 ldapsearch 可以使用 TLS/SSL 來做傳輸的話,就必需修改 ldap.conf 檔案。
0001 0002 0003 0004 0005 |
root # vi /etc/openldap/ldap.conf ------------------------------------- # 加入設定 TLS_REQCERT never ------------------------------------- |
使用 TLS 方式傳輸
0001 0002 0003 0004 0005 0006 0007 0008 0009 0010 0011 0012 0013 0014 0015 0016 0017 0018 0019 0020 0021 0022 0023 0024 0025 |
root # ldapsearch -x -ZZ -b "ou=company,dc=l-penguin,dc=idv,dc=tw" -h ldap.l-penguin.idv.tw # extended LDIF # # LDAPv3 # base <ou=company,dc=l-penguin,dc=idv,dc=tw> with scope subtree # filter: (objectclass=*) # requesting: ALL # # company, l-penguin.idv.tw dn: ou=company,dc=l-penguin,dc=idv,dc=tw ou: company objectClass: organizationalUnit # unit, company, l-penguin.idv.tw dn: ou=unit,ou=company,dc=l-penguin,dc=idv,dc=tw ou: unit objectClass: organizationalUnit # hr, unit, company, l-penguin.idv.tw dn: ou=hr,ou=unit,ou=company,dc=l-penguin,dc=idv,dc=tw ou: hr objectClass: organizationalUnit ~ 以下略 ~ root # |
使用 SSL 方式傳輸
0001 0002 0003 0004 0005 0006 0007 0008 0009 0010 0011 0012 0013 0014 0015 0016 0017 0018 0019 0020 0021 0022 0023 0024 0025 |
root # ldapsearch -x -b "ou=company,dc=l-penguin,dc=idv,dc=tw" -H ldaps://ldap.l-penguin.idv.tw # extended LDIF # # LDAPv3 # base <ou=company,dc=l-penguin,dc=idv,dc=tw> with scope subtree # filter: (objectclass=*) # requesting: ALL # # company, l-penguin.idv.tw dn: ou=company,dc=l-penguin,dc=idv,dc=tw ou: company objectClass: organizationalUnit # unit, company, l-penguin.idv.tw dn: ou=unit,ou=company,dc=l-penguin,dc=idv,dc=tw ou: unit objectClass: organizationalUnit # hr, unit, company, l-penguin.idv.tw dn: ou=hr,ou=unit,ou=company,dc=l-penguin,dc=idv,dc=tw ou: hr objectClass: organizationalUnit ~ 以下略 ~ root # |
如果你已經把 Root CA 設定為 認證中心,那麼就只要做以下設定即可。

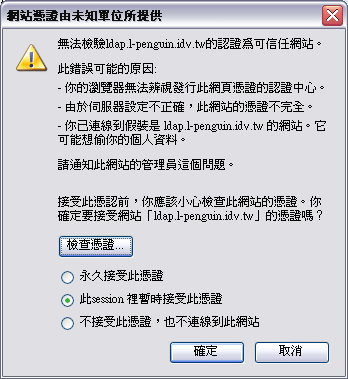

若你的憑證是由自己所簽發的,那麼就會需要同意傳輸時的憑證才行。
如果你已經把 Root CA 設定匯入到 Windows 的憑證管理,那麼就只要做以下設定即可。

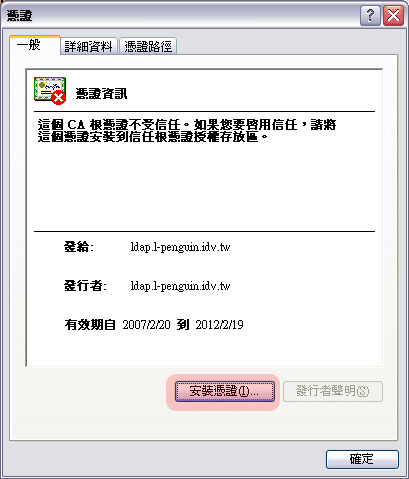

若你的憑證是由自己所簽發的,那麼就會需要匯入憑證才行。
02/21/2007
